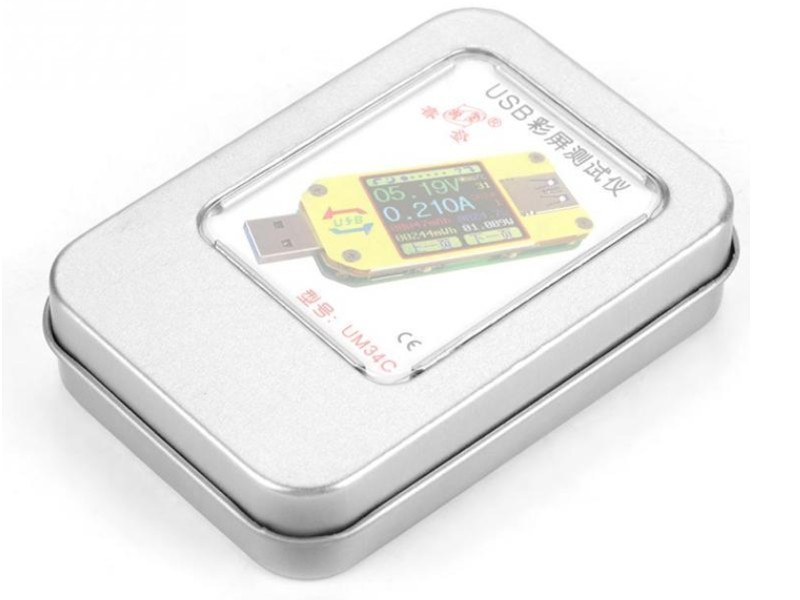

UM34C USB 3.0 Type-C Voltage Current Tester

UM34C USB 3.0 Type-C Voltage Current Tester

can be used to test USB, power bank, charger, tablet, mobile phone, etc... Multi-functions: voltage, current, capacity, temperature, multi-data measurement display,. Support USB 3.0 port
Quick mode recognition: QC2.0 / 3.0, for Apple 2.4A / 2.1A / 1A / 0.5A, Android DCP /, SAMSUNG, equipped with a 1.44 inch color LCD display makes it easy and clear to read..
- 3 input ports: usb, micro usb and type-c,
- 2 output ports: usb and type-c.
- Bluetooth

✅Compact, intuitive and practical to use, just insert it between the charger and the USB cable to read the voltage and current that the smartphone is using while charging.

Technical specifications:

Display: 1.44 inch
color LCD display Voltage measurement range: 4,000-24,000 V
Voltage measurement resolution: 0.01 V.
Voltage measurement accuracy: ± (0.2 ‰ + 1 digit)
Current measurement range: 0-5,0000A
Current measurement resolution: 0.001 A
Current measurement accuracy: ± (0.8 ‰ + 3digit)
Battery storage capacity: 0-99,999 mAh
Energy foam range: 0-999.99 Wh
Time measurement range: 0-99h 59min 59s
Load impedance range: 0.8 Ω-9999.9Ω
Temperature measurement range: -10℃~100℃ / 0℉~200℉
Temperature measurement error: ±3℃ / ±6℉
Screen brightness setting: 0-5 Level
Screen automatic off time: 0-9 minutes
Graph voltage range: 0-24.00V
Current graph range: 0-4.0000A
Data storage: 10 groups
Quick charge recognition mode: QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, SAMSUNG
